High-Precision CNC Machines for Modern Manufacturing
We design and build advanced machining solutions that deliver accuracy, reliability, and long-term performance. Our product range includes CNC vertical machining centers, lathes, CNC router systems, and laser & plasma cutting machines—engineered to handle demanding production needs with ease. Focused on innovation and durability, our machines offer smooth operation, smart control systems, and consistent results across metalworking, fabrication, woodworking, and custom manufacturing.
Build better. Cut faster. Machine with confidence.
Machine Features:
The Cutmaster adopts a T-style bed structure and gantry (crossbeam) motion design. The main body is welded using industrial-grade welding technology, followed by stress-relief quenching treatment, and then precision-machined on a high-accuracy gantry milling machine in a single setup. All assembly components are manufactured in one operation using a 5-axis machining center, ensuring excellent machine rigidity and geometric accuracy.
X and Y axes use high-precision imported rack and pinion drives, while the Z axis uses a high-precision imported grinding-grade ball screw.The spindle features high precision, high speed, constant torque, low runout (low beating/vibration), strong stability, and long service life.Compatible with G-code and PLT-code formats generated by various CAD/CAM software, including Type3, Mastercam, Casmate, ArtCAM, AutoCAD, UG (NX), CorelDraw, and others.
Applications:
Suitable for carving and milling of wood, acrylic, aluminum, copper, aluminum composite panels (ACP), plastics, and carbon fiber composite materials.Widely used in soft metal and sheet material processing fields.
Technical Parameters:
Working Area 1300 × 2500 mm – 2100 x 5500mm
Repeat Position Accuracy ±0.02 mm
Total Spindle Power 6.0 kW – 12 kW
Drive Motor Servo Motor
Running Speed (Idle Speed) 45 m/min
Processing Accuracy ±0.05 mm
Net Weight (N.W.) 1500 kg (1300 × 2500 mm)
Table Dimensions 2100 x3700 – 2100 × 5500 × Z300 mm
Table Material Aluminium
Rack & Pinion System X-axis 25×25 MOD2 – Helical, Hardened / BRL
Guides & Bearings Y & Z axes Y 30 × 25 × 25 / BRL
Coupling Standard Type / BRL
Screw Ball screw 25×05 / BRL
Miter System Type Automatic / EXPFLEX System
Vacuum Sections Number & Type 6 Sections – Automatic / HIMMEL
Vacuum Pump Type & Capacity 250 m³/h Dry Pump / Becker
Lubrication System Type & Points Automatic – 17 Points / KeyLube
Reducers Type & Location Festo R1/17 – Liming (behind table 7+7)
Tool Changer Type & Capacity Automatic SENT / 7+7 (behind table) / 4+4 holders
Spindle Motor Power & Speed 9.5 kW – 24,000 RPM (2 pcs / CS)
CNC Control Unit Brand TPA
Servo Motors Axes Y: 1.0 kW × 1, Z: 1.0 kW (Leadshine)
Dust Collector System Capacity 5000 m³/h
Installation Dimensions Width × Length × Height W3000 × L6000 × H2300 mm
Package Dimensions Width × Length × Height W2200 × L6000 × H2300 mm
Energy Consumption Total power 25 kW
Air Requirements Pressure 7 Bar
Weight Machine weight 4,250 kg (2100 × 5500 × Z300 mm)
Table Area (Working Area) 1220 × 2440 mm – 2100 x 5500mm
Spindle Power 9.0 kW
Vacuum Pump Power 5.5 kW
Frequency Converter 11 kW
Air Pump 230 m³/h
Machining accuracy: up to 0.05 mm
High-speed spindle motor for fast wood cutting
Capable of 2D cutting to complex 3D engraving
Advanced CNC system with intuitive programming interface
Equipped with safety features (protective door, cover, etc.) to prevent wood chips splash and operator contact.
Laser Power1500W – 3000W (fiber laser)
Laser Wavelength 1070 nm ± 10 nmMinimum Line Width0.1 mm ± 10 μm
Repeat Positioning Accuracy±0.05 mm
Cutting Range (Working Area)1500 × 3000 mm
Maximum Cutting Thickness6 – 25 mm
Aimed and PositioningRed lightPower
Cooling Mode Water cooled
Machine Net Weight≥ 1600 kg
Machine Body Structure — Welded sheet metal structure body, after high-temperature annealing and aging treatment (with secondary vibration aging), the worktable surface and mounting holes are precision machined in one pass using a high-precision gantry milling machine → Ensures long-term strength, rigidity, and machining accuracy/stability of the machine.
Transmission System — Uses imported high-precision planetary helical gear reducer, high-precision gear rack, imported grinding-grade ball screws, and high-precision linear guides → High precision, low noise, stable and reliable high-speed operation.
Drive Control — Servo drive control system → Stronger torque, faster running speed, smoother operation.
Dust/Smoke Extraction — Adaptive follow-up high-flow smoke exhaust system → Excellent smoke extraction effect, energy-saving, and better working environment.
Laser Cutting Head & Components — Adopts advanced imported laser cutting head and high-quality laser lenses → Smaller focused spot size, finer cutting lines, higher work efficiency, and better processing quality.
Control System — Professional laser cutting CNC control system with intelligent nesting/layout function → Simpler operation, higher efficiency, and intelligent features.
Tube Clamping & Centering — Fully automatic centering pneumatic chuck (power chuck) → Guarantees flatness and feeding accuracy for long pipes/tubes; supports square tubes, round tubes, rectangular tubes, D-shaped tubes, hexagonal tubes, and other special-shaped tubes. Includes automatic tube center finding/correction function → Intelligent, convenient, practical. Centralized operation, flexible processing, quick and easy clamping.
Overall Design — Simple integrated/one-piece design → Small footprint, one machine serves two purposes (cuts both flat sheets/plates and tubes/pipes), high-efficiency processing machine, space-saving, cost-effective.
Additional Key Advantages
High cutting speed and small kerf width.
High precision, high efficiency, and excellent cutting quality (smooth edges, minimal burrs in many similar models).
Versatile and flexible for dual use without needing separate machines.
Application Fields / Industries Widely used in the following industries:
Sheet metal processing Medical equipment / medical devices Sports equipment Lighting industry (lamps and lanterns) Decoration and advertising industry Furniture industry Kitchen and bathroom industry (e.g., stainless steel sinks, cabinets, etc.)
This machine is a dual-purpose (sheet + tube) fiber laser cutting machine, ideal for businesses needing to process both flat metal sheets and various metal tubes/pipes efficiently in one compact system.
Machine Features:
Adopts a fully covered frame structure to prevent radiation damage to operators.
Equipped with high-efficiency transmission mechanisms, including imported high-precision rack and pinion and linear guides.
Features high cutting efficiency and performance with medium- to high-power fiber lasers.
Uses advanced numerical control system for fast servo response.
Employs a gantry structure for high precision, good rigidity, and stable operation.
Includes a universal roller device for labor-saving and convenient material handling.
Base is made of high-quality 16mm steel plate and pipe-welded frame structure.
The machine undergoes high-temperature annealing treatment, secondary aging treatment, and large-scale gantry milling for precision machining — these processes ensure excellent shock resistance, rigidity, and stability.
Equipped with a blanking drawer — no need to pull out the drawer when cleaning blanks (convenient design).
Features an automatic focusing cutting head — automatically adjusts the optimal focal length to ensure the best cutting effect across the entire board.
Includes a non-contact capacitive automatic height-following system — ensures consistent height between the cutting head and material (even if the material is not flat), avoiding scrapping due to height variations.
Uses fiber lasers with high electro-optical conversion efficiency — significantly reduces power consumption during operation, lowers running costs, produces less heat-affected trimming, results in flat slits, and generally requires no secondary processing.
Application Fields: Widely used in various metal processing industries, including: Kitchen and bathroom utensils Advertising signs Lighting hardware Electrical cabinets Auto parts Machinery and equipment Electrical equipment Aerospace Shipbuilding Elevator manufacturing Rail transit Textile machinery Precision parts processing Sheet metal rocessing And other metal industries.
Technical Parameters:
Processing Dimensions — 1500 / 2000 / 2500 × 6000 mm
Overall Dimensions — 15000 × 3450 × 2500 mm
Overall Weight — 12000–14000 kg
Maximum Speed — 1.2G (acceleration)
Repetitive Positioning Accuracy — ±0.02 mm
Laser Power — 6000W – 30000W
X-axis Servo — 1300W
Y-axis Servo — 1800W
Z-axis Servo — 400W
Specialized in cutting square, round, rectangular, D-shaped, hexagonal, and other types of tubes. Includes automatic deskew function and tube center finding. Intelligent, convenient, and practical operation. Centralized operation with flexible processing and quick, convenient clamping. Sheet metal welding structure body, with quenching, tempering, and stress-relieving treatment. Table plane and mounting holes machined by high-precision gantry grinding milling at one time, ensuring high strength, tool precision, and long service life. Uses imported high-precision grinding-grade ball screw and imported high-precision linear guide, for high precision. Servo drive control adopted, providing stronger torque, faster and smoother running speed. Higher working efficiency and better processing quality.
Equipped with domestic leading laser cutting head and laser lens — smaller focusing spot, finer cutting line, higher working efficiency, and better processing quality.
Professional laser cutting CNC control system with intelligent layout function — simpler operation and higher efficiency.
Full-automatic centering power chuck: Guarantees flatness and feeding accuracy when clamping and tightening longer tubes.
Technical Parameters
Processing Dimensions: 6000 mm length, diameter 120–160 mm
Repetitive Positioning Accuracy: ±0.03 mm
Laser Wavelength: 1070 nm ±10 nm
Overall Weight: 1500 kg
Chuck Size: 120 / 160 mm
Power: 1500 W – 3000 W
Acceleration: 0.8 G (m/s²)
Laser Power: 3000W
Position Accuracy: ±0.03 mm
Re-position Accuracy: ±0.02 mm
Maximum Cutting Thickness: Stainless steel: 10 mm Mild steel: 20 mm
Maximum Moving Speed: 120 m/min
Maximum Acceleration: 1.2G
Lubrication Method: Automatic lubrication system
Machine Total Power: 12 kW 19A
Net Size (L×W×H): 4450 × 2497 × 1860 mm
Net Weight: 2200 kg
Machine Features: CO2 laser cutting machine.
Structure: Gantry (dragon-frame) type with servo motor drive for high precision and high speed.
Laser source: Domestic high-performance 150W laser (low power consumption), with optional upgrades to 180W, 300W, or 450W in similar models.
Transmission: High-precision ball screw + imported high-precision linear guides for efficient and accurate movement.
Body: Welded bed, with annealing after welding and vibration aging treatment for high rigidity, stability, and shock resistance.
Control: CNC numerical control system integrating laser cutting, precision machinery, and digital control technology.
Suitable for both flat and curved surface cutting and forming.
Ideal for non-metallic material processing, especially preferred in advertising and die-cutting board industries.
Application Fields / Industries
Advertising Handicrafts Clothing / leather processing Kitchen utensils / kitchenware Lighting / light decoration Other related non-metallic processing industries
Applicable Materials
Professional for medium and thin non-metallic sheets, high-quality die-cutting board cutting.
Also suitable for: PVC, MDF (density board), acrylic, ABS, wood, leather, and other non-metallic materials.
Note: Primarily for non-metals; not designed for metal cutting in standard configuration.
Technical Parameters
Cutting area / Working area: 1300 × 2500 mm
Laser power: 150W (standard), optional 180W / 300W / 450W
Cutting accuracy: ±0.05 mm / 1000 mm
Repeat position accuracy: ≤ 0.1 mm
Cutting thickness (example for acrylic): < 30 mm
Rated power: 4 kW
Supported file formats: DXF, Type3, CDR, AI
Machine dimensions: 3780 × 2000 × 1100 mm (approx.)
Machine weight (Net): 1000 kg
This model is a high-tech, cost-effective CO2 laser cutter optimized for large-format non-metallic cutting in industries like signage, crafts, and leather goods.
Machine Body: Integrated full steel body with low-temperature tempering treatment to reduce deformation.
Optical Path: Flying ray path with synchronous movement of the laser tube and gantry, effectively improving laser efficiency.
Laser Tube: Super-large power laser tube, suitable for large-scale mass production; can cut up to 30 mm thick acrylic plate in one pass.
Control System: Most advanced DSP control system, powerful functionality; supports plane engraving, 360-degree gradient engraving, cutting, drilling, and other processing methods.
Additional Functions: Power-off memory, breakpoint continuation (resume from stop point), and other features.
Laser Lens: Equipped with high-quality laser lenses imported from the USA to ensure perfect cutting effect.
Application Materials
Applicable to: Acrylic, PVC board, wooden products, crystal, rubber, plastic, double-color plate, PCB board, paper, Leather, tile, and more.
Applicable Industries: Advertising industry Decoration industry Clothing industry Leather industry Shoe industry Model industry (architectural models, airplane/ship models) Craft gift industry Electronics and electrical appliances ndustry, etc.
Typical Applications: Signage and marking signs Acrylic products Atomic stamps (rubber stamps) Clothing pattern cutting/proofing Printing plates Craft production Architectural model making, etc.
Technical Parameters
Cutting Range / Working Area 1300 × 900 mm
Laser Power 80–180 W
Repeat Positioning Accuracy < 0.1 mm
Minimum Cutting Character Size English: 0.8 mm
Resolution Ratio < 0.025 mm
Positioning Accuracy 0.1 mm
Supported File Formats AutoCAD, Type3, CorelDraw, Illustrator
Machine Weight 300 kg
This is a large-format CO2 laser engraving and cutting machine, designed for non-metal materials with high power and precision for industrial and craft use.
The A8 is a newly developed and produced cutting machine.
It supports diversified/multiple cutting tools (e.g., oscillating/vibrating knife, round knife, etc.).
Designed for precise, fast, convenient, and easily modifiable cutting with high efficiency.
Ideal for special-shaped (irregular/heteromorphic) and personalized cutting of soft/flexible materials.
System compatibility: Supports DXF, PLT, NC, and other common formats.
Materials It Cuts (Typical Soft Materials) Rubber Leather KT board (foam board) Car stickers Reflective film LED light box soft film / industrial sealing rings / soft films Other soft and flexible industrial materials.
Application Areas
UV printing Decoration Soft bags Furniture Craft gifts / handicrafts Printing, packaging, and related industries Technical Parameters Parameter
Working Area 1600 mm × 2500 mm
Repeat Positioning Accuracy ±0.2 mm
Machining / Cutting Accuracy ±0.015 mm
Spindle Speed 60,000 RPM
Vibrating Knife Speed 0–18,000 strokes/min (or RPM equivalent)
Round Knife Speed 0–15,000 RPM
Empty Travel / Max Feeding Speed 75 m/min
Vibration Amplitude / Stroke Hybrid servo motor (specific amplitude not listed)
Machine Weight Approximately 1000 kg
Non-integrated / Modular Structure The control system, laser system, and cooling system are all independently designed and composed. This makes them easy to operate, pick up, maintain, and follow up on later. The handheld welding head is easy to operate, pick up, and move.
Fiber Laser Source Uses a fiber laser source. The laser beam quality is very good, and the output power is stable. This ensures high welding performance. The machine is equipped with a safety control box, which only allows the laser beam to be emitted at the beginning of welding.
Special Welding Software Uses dedicated welding software. It supports a continuous laser beam with adjustable output waveform, which guarantees excellent high-speed welding results.
Low Operating Cost & Excellent Material Compatibility Very low work cost: The machine consumes only 1–1.5 degrees of electricity per hour. It can weld a variety of thin metal plates and different metals, including: Stainless steel Carbon steel Copper Aluminum alloy Galvanized sheet Offers very good welding performance, with no deformation and minimal thermal effect.
Enhanced Safety Features 2 Trigger + weld partial contact sensors to improve operator safety. Safety interlock verifies the integrity of the laser transmission to the welding gun. These points highlight the main advantages of this handheld laser welding machine.cation Max / Raycus / IPG / Reci (Common)
Laser Source Max, Raycus, IPG, Reci Common brands used
Laser Head Gefasst, Relfar, Qilin Common handheld welding head brands
Wavelength Range 1070 ± 20 nm Standard for all
Optical Fiber Interface QBH Standard connector
Fiber Length 10 m Standard length
Maximum Wire Feed Speed 80 mm/s For auto wire feeder
Welding Thickness 0.2–3 mm For Max / Raycus / IPG configurations
Welding Thickness 0.2–8 mm For Reci configuration (thicker capability)
Auto Wire Feeder Net Weight 16 kg For Max / Raycus / IPG configurations
Auto Wire Feeder Net Weight 26 kg For Reci configuration
Machine Dimension (L×W×H) 1100 × 700 × 1100 mm Standard machine size
Packaging Dimension (L×W×H) 1400 × 750 × 1200 mm Standard packaging size
Machine Net Weight 165 kg For Max / Raycus / IPG configurations
Machine Net Weight 220 kg For Reci configuration
Gross Weight 190 kg For Max / Raycus / IPG configurations
Gross Weight 250 kg For Reci configuration

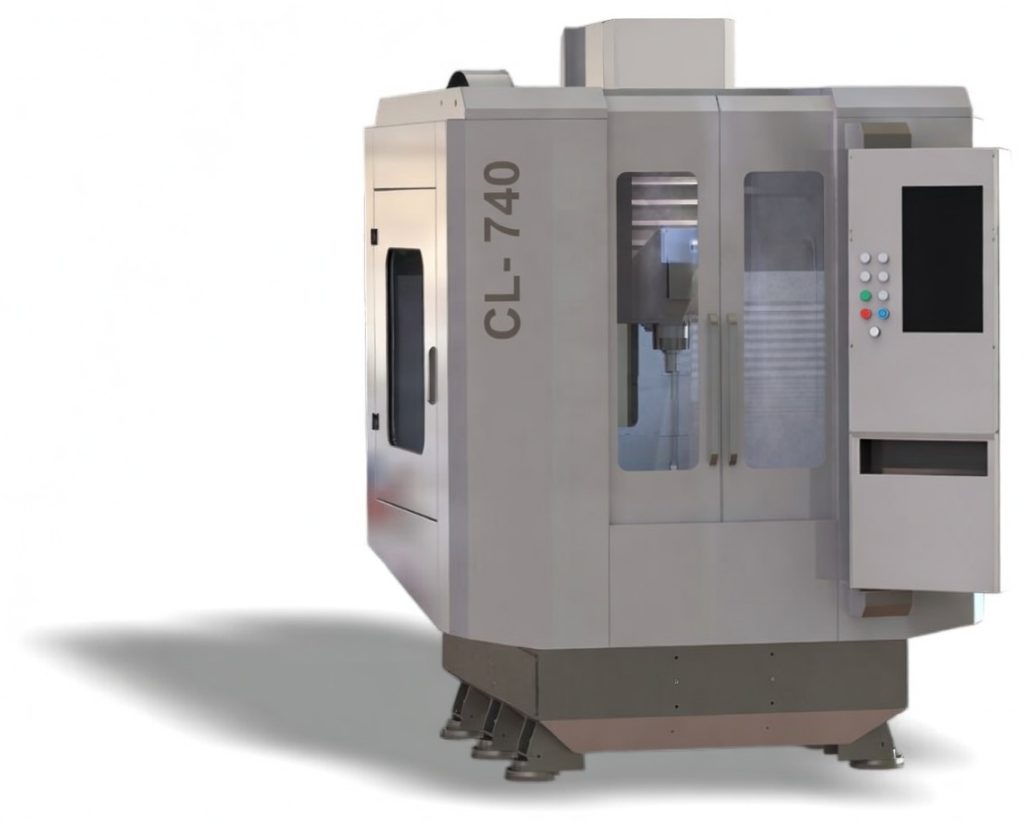

Control Systems: Compatible with Mitsubishi, Fanuc, Falcon, Siemens, WindowsCNC.
Option to select control units upon customer request.
Automation Readiness: Equipped with self-opening/closing doors.Ready for automation integration.
Environmental Suitability: Can operate in environments that do not require high voltage. Telescopic axes bellows for protection.
Specifically designed for training institutions and garage workshops.
User Interface: User-friendly interface.
Spindle: High-speed spindle ranging from 6,000 to 24,000 RPM.
Axis and Structure Options: Powerful motors on 3 axes (standard).
Add-ons available featuring a structure that can be raised to 4 or 5 axes.
Design and Construction: Compact machine design.
38% larger machining area (compared to standard comparable models).
Lightweight construction allowing operation in various environments.
Bulletproof / Soldpolycarbon (likely referring to bulletproof polycarbonate protection/safety features for safe working conditions).
This machine appears tailored for educational, training, small workshop, or garage use, emphasizing ease of use, safety, automation compatibility, and a balance of performance in a compact footprint.
