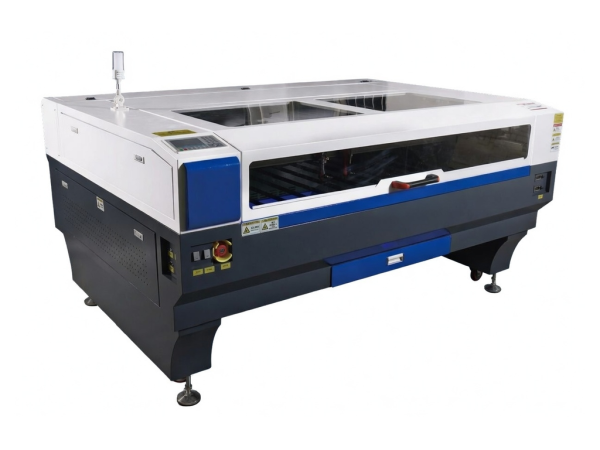

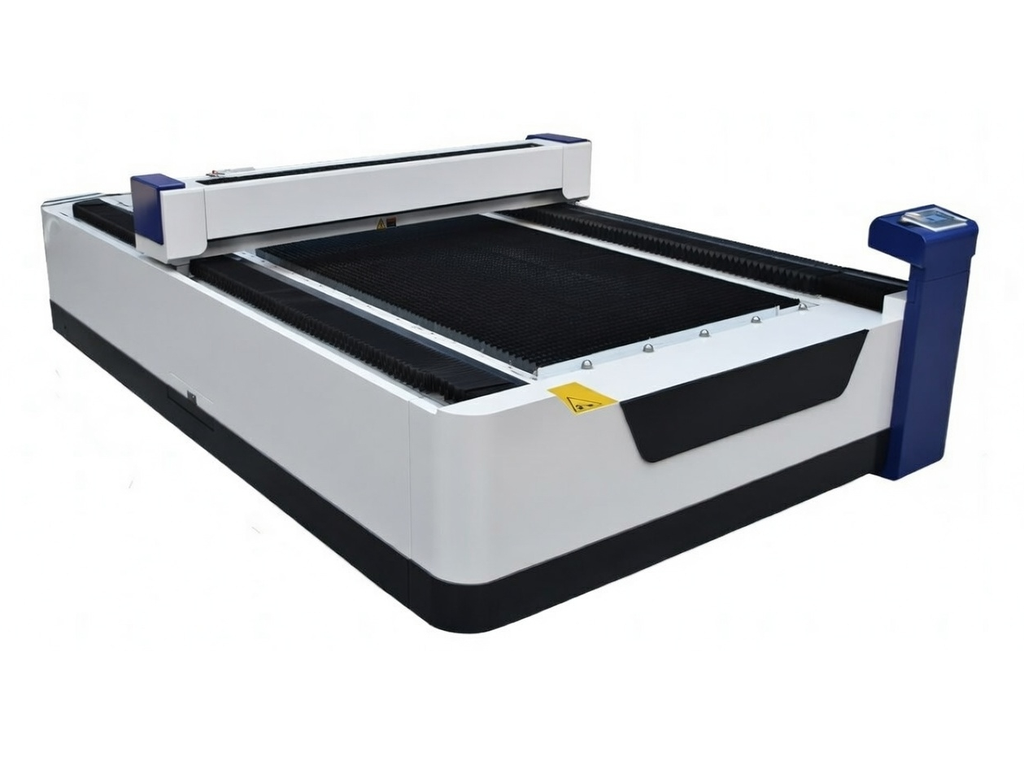

CO2 LASER & ENGRAVING ST-1325
CARBON LASER CUTTER Machine Features: CO2 laser cutting machine. Structure: Gantry (dragon-frame) type with servo motor drive for high precision and high speed. Laser source: Domestic high-performance 150W laser (low power consumption), with optional upgrades to 180W, 300W, or 450W in similar models.
| Attributes | Value |
|---|---|
| Working Area |
1300 × 2500 mm |
| Laser Power |
150W (standard), optional 180W / 300W / 450W |
| Repeat Position Accuracy |
±0.05 mm |
| Maximum Cutting Thickness |
30 mm |
| Net Weight |
1000 kg |
Description
Transmission: High-precision ball screw + imported high-precision linear guides for efficient and accurate movement.
Body: Welded bed, with annealing after welding and vibration aging treatment for high rigidity, stability, and shock resistance.
Control: CNC numerical control system integrating laser cutting, precision machinery, and digital control technology.
Suitable for both flat and curved surface cutting and forming.
Ideal for non-metallic material processing, especially preferred in advertising and die-cutting board industries.
Application Fields / Industries
Advertising Handicrafts Clothing / leather processing Kitchen utensils / kitchenware Lighting / light decoration Other related non-metallic processing industries
Applicable Materials
Professional for medium and thin non-metallic sheets, high-quality die-cutting board cutting.
Also suitable for: PVC, MDF (density board), acrylic, ABS, wood, leather, and other non-metallic materials.
Note: Primarily for non-metals; not designed for metal cutting in standard configuration.
Technical Parameters
Cutting thickness (example for acrylic): <
Rated power: 4 kW
Supported file formats: DXF, Type3, CDR, AI
Machine dimensions: 3780 × 2000 × 1100 mm (approx.)
This model is a high-tech, cost-effective CO2 laser cutter optimized for large-format non-metallic cutting in industries like signage, crafts, and leather goods.
