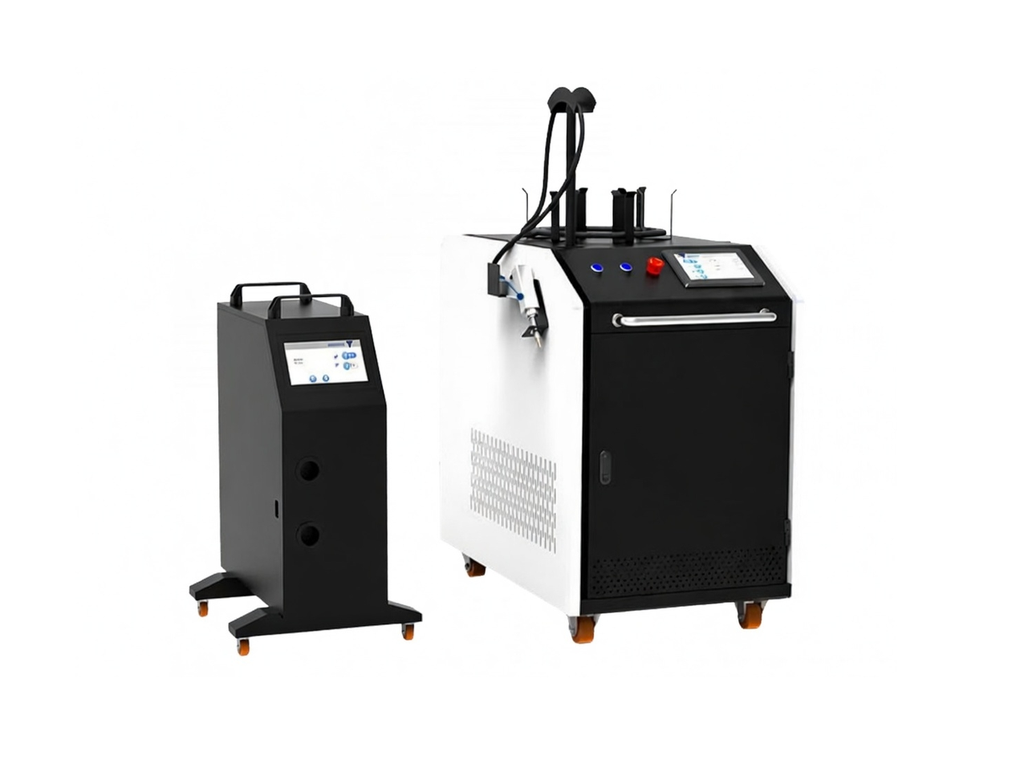

LASER WELDING CUTTING CLEANING 3 IN 1

Non-integrated / Modular Structure The control system, laser system, and cooling system are all independently designed and composed. This makes them easy to operate, pick up, maintain, and follow up on later. The handheld welding head is easy to operate, pick up, and move.
Fiber Laser Source Uses a fiber laser source. The laser beam quality is very good, and the output power is stable. This ensures high welding performance. The machine is equipped with a safety control box, which only allows the laser beam to be emitted at the beginning of welding.
Special Welding Software Uses dedicated welding software. It supports a continuous laser beam with adjustable output waveform, which guarantees excellent high-speed welding results.
Enhanced Safety Features 2 Trigger + weld partial contact sensors to improve operator safety. Safety interlock verifies the integrity of the laser transmission to the welding gun. These points highlight the main advantages of this handheld laser welding machine.cation Max / Raycus / IPG / Reci (Common)
Laser Source Max, Raycus, IPG, Reci Common brands used
Laser Head Gefasst, Relfar, Qilin Common handheld welding head brands
Wavelength Range 1070 ± 20 nm Standard for all
Optical Fiber Interface QBH Standard connector
Fiber Length 10 m Standard length
Maximum Wire Feed Speed 80 mm/s For auto wire feeder
Welding Thickness 0.2–3 mm For Max / Raycus / IPG configurations
Welding Thickness 0.2–8 mm For Reci configuration (thicker capability)
Auto Wire Feeder Net Weight 16 kg For Max / Raycus / IPG configurations
Auto Wire Feeder Net Weight 26 kg For Reci configuration
Machine Dimension (L×W×H) 1100 × 700 × 1100 mm Standard machine size
Packaging Dimension (L×W×H) 1400 × 750 × 1200 mm Standard packaging size
Machine Net Weight 165 kg For Max / Raycus / IPG configurations
Machine Net Weight 220 kg For Reci configuration
Gross Weight 190 kg For Max / Raycus / IPG configurations
Gross Weight 250 kg For Reci configuration
