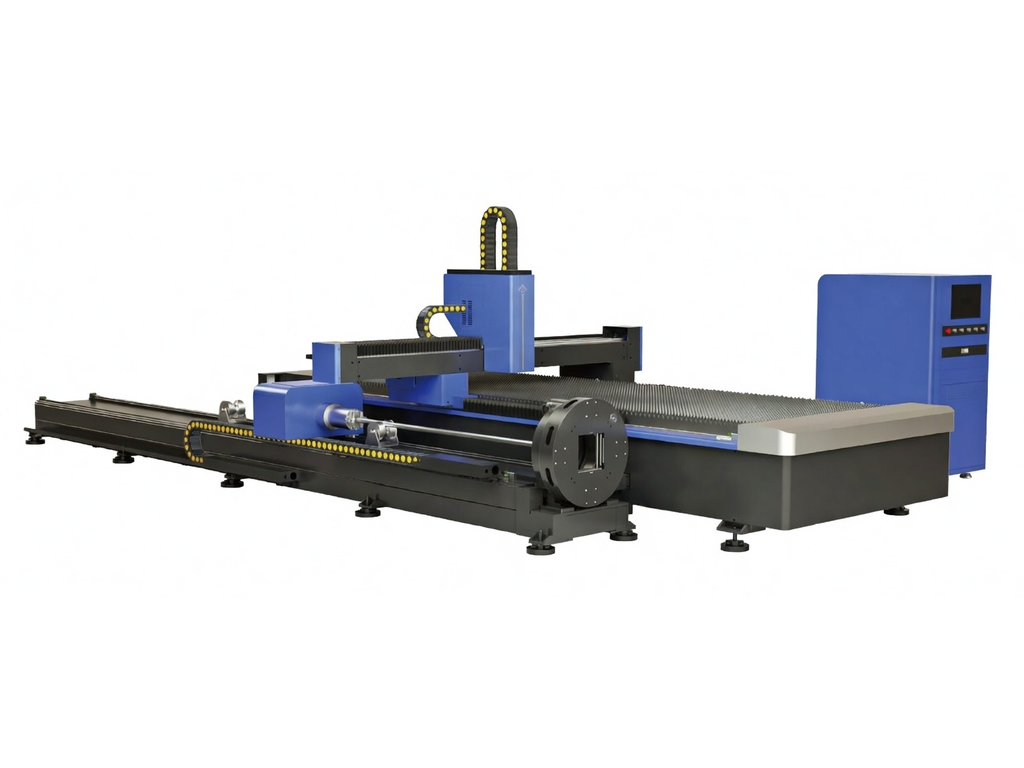

SHEET AND TUBE FIBER CUTTING CENTER
Simple integrated/one-piece design → Small footprint, one machine serves two purposes (cuts both flat sheets/plates and tubes/pipes), high-efficiency processing machine, space-saving, cost-effective.
High cutting speed and small kerf width.
High precision, high efficiency, and excellent cutting quality (smooth edges, minimal burrs in many similar models).
Versatile and flexible for dual use without needing separate machines.
Machine Body Structure — Welded sheet metal structure body, after high-temperature annealing and aging treatment (with secondary vibration aging), the worktable surface and mounting holes are precision machined in one pass using a high-precision gantry milling machine → Ensures long-term strength, rigidity, and machining accuracy/stability of the machine.
Transmission System — Uses imported high-precision planetary helical gear reducer, high-precision gear rack, imported grinding-grade ball screws, and high-precision linear guides → High precision, low noise, stable and reliable high-speed operation.
Drive Control — Servo drive control system → Stronger torque, faster running speed, smoother operation.
Dust/Smoke Extraction — Adaptive follow-up high-flow smoke exhaust system → Excellent smoke extraction effect, energy-saving, and better working environment.
Laser Cutting Head & Components — Adopts advanced imported laser cutting head and high-quality laser lenses → Smaller focused spot size, finer cutting lines, higher work efficiency, and better processing quality.
Control System — Professional laser cutting CNC control system with intelligent nesting/layout function → Simpler operation, higher efficiency, and intelligent features.
Tube Clamping & Centering — Fully automatic centering pneumatic chuck (power chuck) → Guarantees flatness and feeding accuracy for long pipes/tubes; supports square tubes, round tubes, rectangular tubes, D-shaped tubes, hexagonal tubes, and other special-shaped tubes. Includes automatic tube center finding/correction function → Intelligent, convenient, practical. Centralized operation, flexible processing, quick and easy clamping.
Application Fields / Industries Widely used in the following industries:
Sheet metal processing Medical equipment / medical devices Sports equipment Lighting industry (lamps and lanterns) Decoration and advertising industry Furniture industry Kitchen and bathroom industry (e.g., stainless steel sinks, cabinets, etc.)
This machine is a dual-purpose (sheet + tube) fiber laser cutting machine, ideal for businesses needing to process both flat metal sheets and various metal tubes/pipes efficiently in one compact system.
