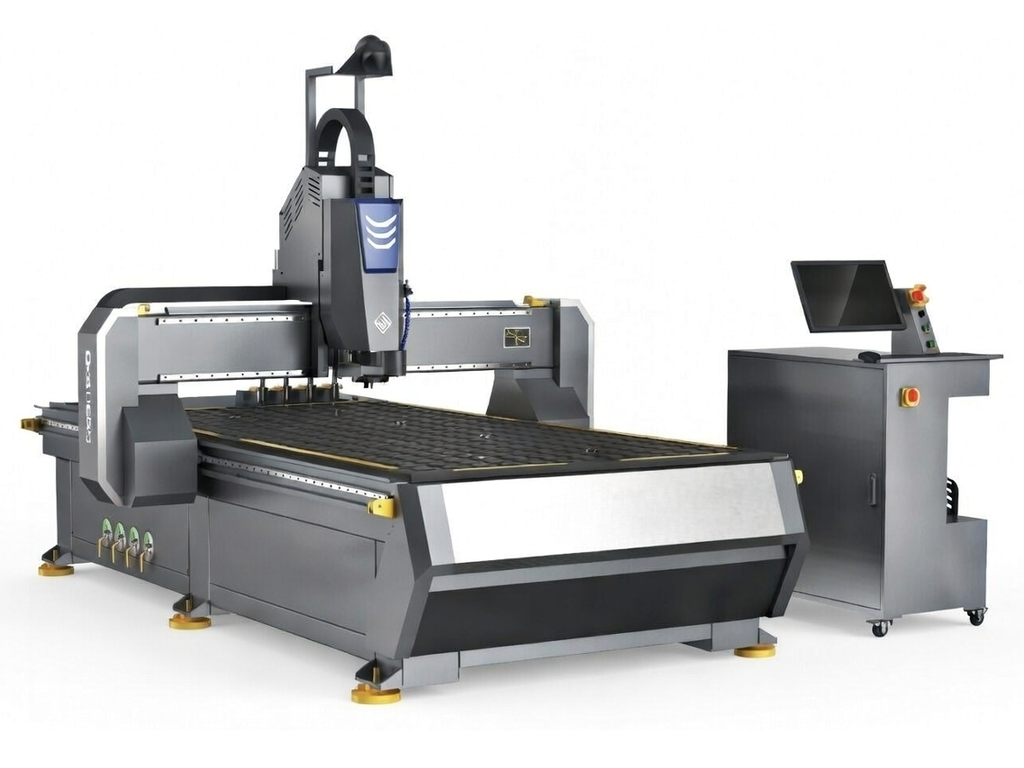

CNC ROUTER CUTMASTER SERIES ST-3621
CUTMASTER SERIES Machine Features: The Cutmaster adopts a T-style bed structure and gantry (crossbeam) motion design. The main body is welded using industrial-grade welding technology, followed by stress-relief quenching treatment, and then precision-machined on a high-accuracy gantry milling machine in a single setup. All assembly components are manufactured in one operation using a 5-axis machining center, ensuring excellent machine rigidity and geometric accuracy.
| Attributes | Value |
|---|---|
| Repeat Position Accuracy |
±0.02 mm |
| Spindle Power |
6.0 kW – 12 kW |
| Drive Motor |
4x Servo Motors |
| Running Speed (Idle Speed) |
45 m/min |
| Net Weight |
1500 kg (1300 × 2500 mm) |
| Working Area |
1300 × 2500 mm – 2100 x 5500mm |
Description
X and Y axes use high-precision imported rack and pinion drives, while the Z axis uses a high-precision imported grinding-grade ball screw.The spindle features high precision, high speed, constant torque, low runout (low beating/vibration), strong stability, and long service life.Compatible with G-code and PLT-code formats generated by various CAD/CAM software, including Type3, Mastercam, Casmate, ArtCAM, AutoCAD, UG (NX), CorelDraw, and others.
Applications:
Suitable for carving and milling of wood, acrylic, aluminum, copper, aluminum composite panels (ACP), plastics, and carbon fiber composite materials.Widely used in soft metal and sheet material processing fields.
