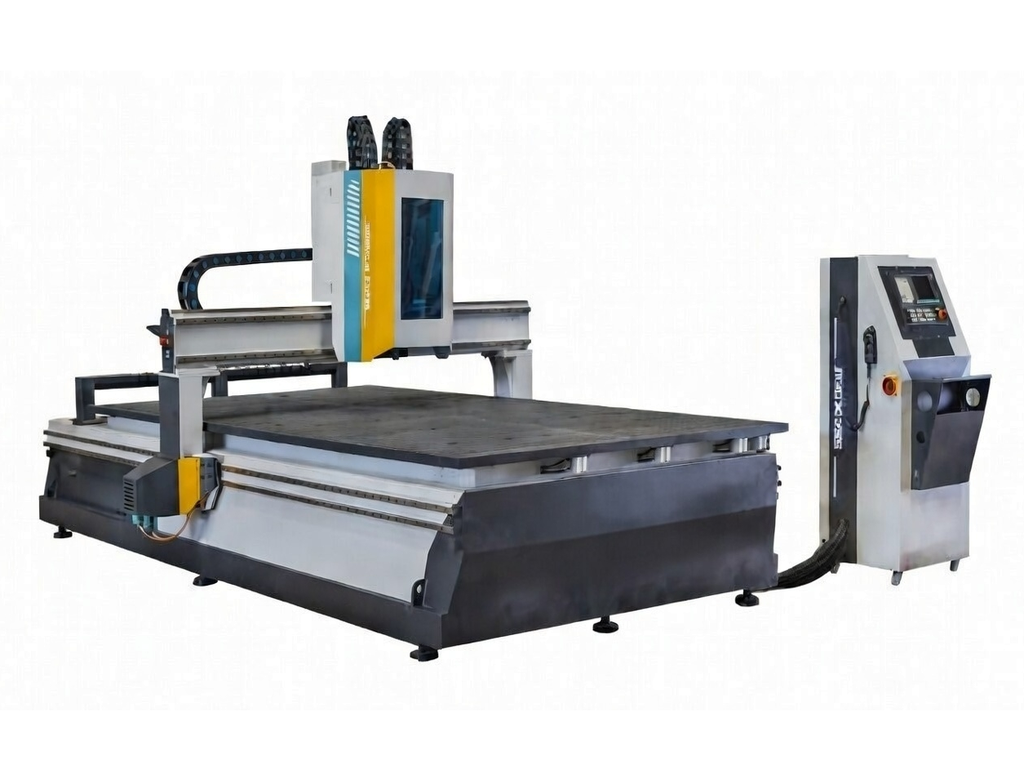

CNC ROUTER SULTAN SERIES ST-3721
SULTAN SERIES CNC ROUTER CSA Certification ready Table Material Aluminium Rack & Pinion System X-axis 25×25 MOD2 – Helical, Hardened / BRL Guides & Bearings Y & Z axes Y 30 × 25 × 25 / BRL Coupling Standard Type / BRL Screw Ball screw 25×05 / BRL Miter System Type Automatic / EXPFLEX System
| Attributes | Value |
|---|---|
| Working Area |
2100 × 5500 × Z300 mm, 2100 x 3700mm |
| Tool Changer |
Automatic SENT / 7+7 (behind table) / 4+4 holders |
| Drive Motors |
4x 1.0 kW (Leadshine) |
| Spindle Power |
9.5 kW – 24,000 RPM (2 pcs / CS) |
| Net Weight |
2100 KG |
Description
CSA Certification ready
Vacuum Sections Number & Type 6 Sections – Automatic
Vacuum Pump Type & Capacity 250 m³/h Dry Pump / Becker
Lubrication System Type & Points Automatic – 17 Points / KeyLube
Reducers Type & Location Festo R1/17 – Liming (behind table 7+7)
Dust Collector System Capacity 5000 m³/h
Installation Dimensions Width × Length × Height W3000 × L6000 × H2300 mm
Package Dimensions Width × Length × Height W2200 × L6000 × H2300 mm
Energy Consumption Total power 25 kW
Air Requirements Pressure 7 Bar
