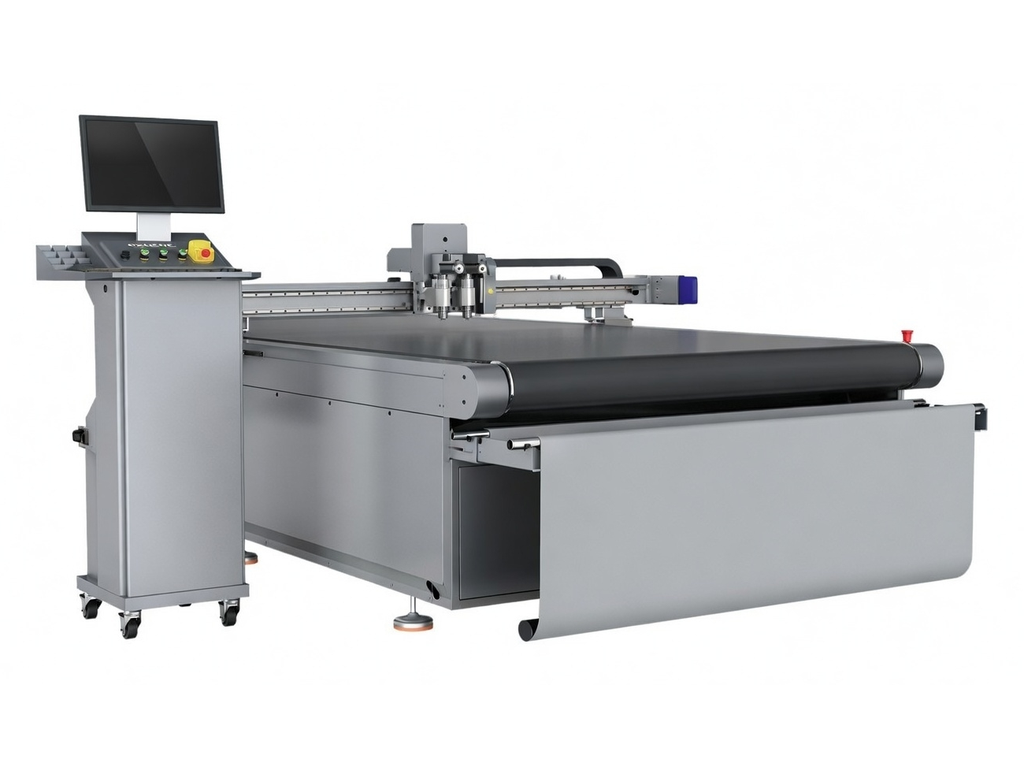

MULTIFUNCTIONAL SPECIAL-SHAPED CUTTER
The A8 is a newly developed and produced cutting machine. It supports diversified/multiple cutting tools (e.g., oscillating/vibrating knife, round knife, etc.). Designed for precise, fast, convenient, and easily modifiable cutting with high efficiency. Ideal for special-shaped (irregular/heteromorphic) and personalized cutting of soft/flexible materials.
| Attributes | Value |
|---|---|
| Net Weight |
1000 kg |
| Working Area |
1600 mm × 2500 mm |
| Repeat Position Accuracy |
±0.2 mm |
| Spindle Power |
60,000 RPM |
Description
System compatibility: Supports DXF, PLT, NC, and other common formats.
Materials It Cuts (Typical Soft Materials) Rubber Leather KT board (foam board) Car stickers Reflective film LED light box soft film / industrial sealing rings / soft films Other soft and flexible industrial materials.
Application Areas
UV printing Decoration Soft bags Furniture Craft gifts / handicrafts Printing, packaging, and related industries Technical Parameters Parameter
Machining / Cutting Accuracy ±0.015 mm
Vibrating Knife Speed 0–18,000 strokes/min (or RPM equivalent)
Round Knife Speed 0–15,000 RPM
Empty Travel / Max Feeding Speed 75 m/min
Vibration Amplitude / Stroke Hybrid servo motor (specific amplitude not listed)
